Row and Cell Selection in Worksheets

Key Features

• Secondary Highlight for Cell Selection: When you select a single cell, the entire row receives a secondary highlight. This indicates that the row’s properties and details are editable based on the selected cell.

• Multiple Cell Selection: If you select multiple cells (by dragging across the table), every row containing a selected cell will display a secondary highlight.

• Primary Highlight for Row Selection: Clicking the checkbox on the left side of a row selects the entire row, which then receives a primary highlight. This indicates full selection of the row.

• Editing Without Losing Selection: When you double-click a cell in a selected row (primary highlight), the row remains highlighted. You can edit the cell without losing the row selection.

• Switching Between Row and Cell Selection: If you select specific cells after previously selecting rows (with primary highlight), the previously highlighted rows are deselected. The rows containing the newly selected cells receive a secondary highlight.

• Deselecting Rows: Clicking a cell in a different, unselected row will deselect the previously highlighted row and apply a secondary highlight to the new row.

• Editing Row Properties from Cell Selection: If a cell is selected and the row shows a secondary highlight, you can edit row-level properties or details. The highlight state persists after editing.

• Consistent Behavior Across Modules: All selection and highlight behaviors are consistent in both Worksheets and Payroll Integration Preview screens.

How to Use

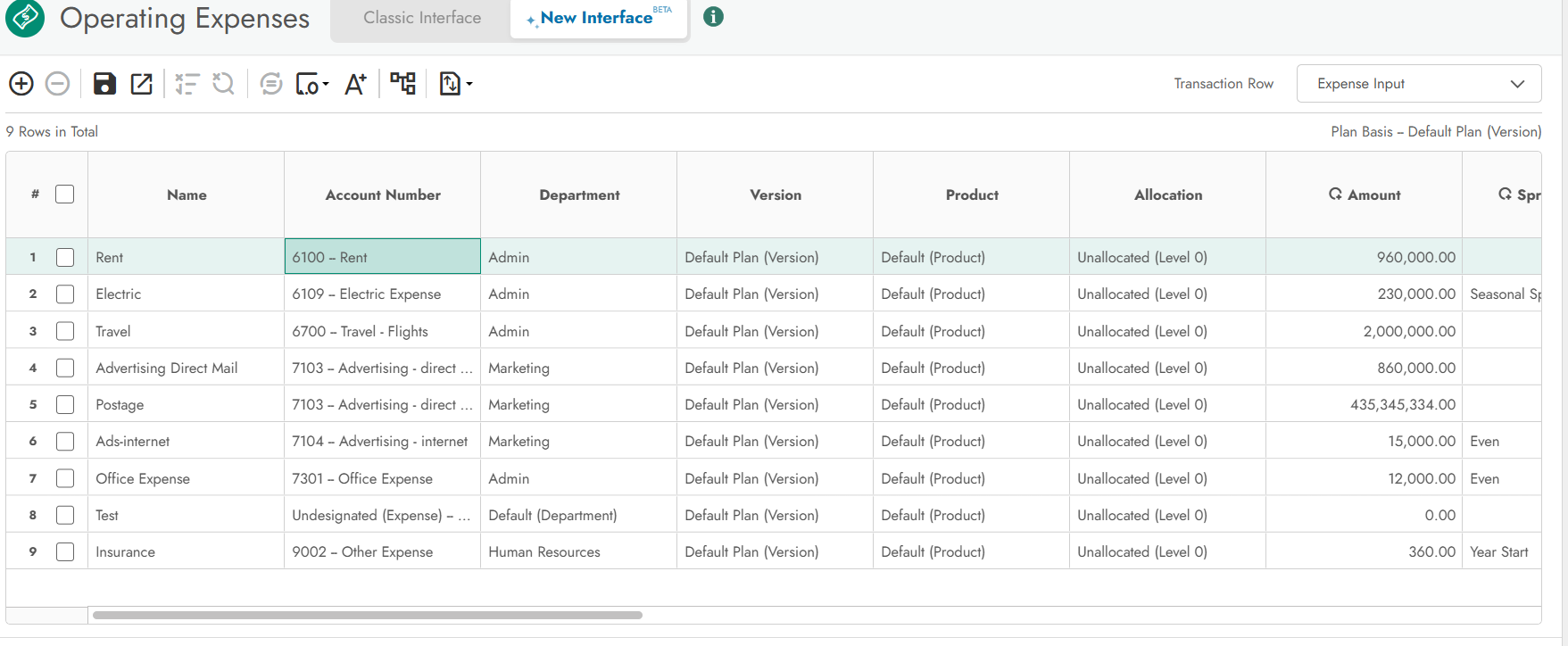

Selecting a Single Cell

1. Click on any cell in the table.

2. The entire row will be highlighted with a secondary color.

3. You can now edit the row’s properties or details.

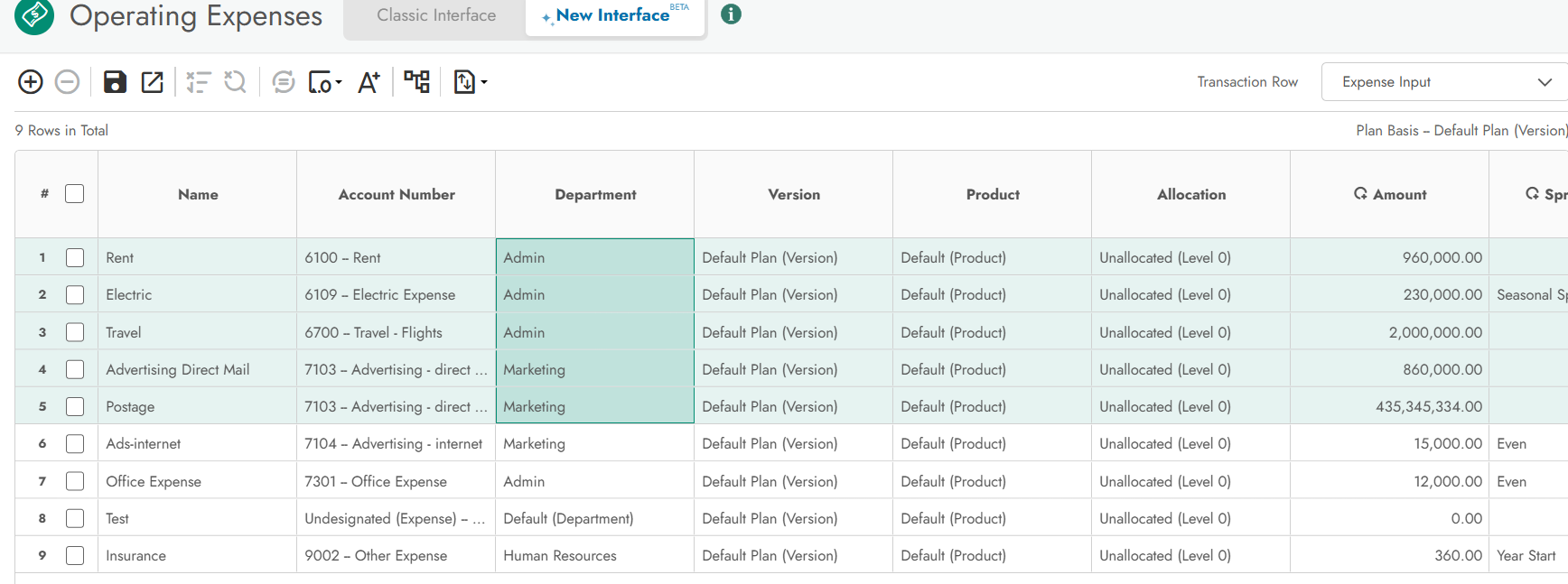

Selecting Multiple Cells

1. Click and drag across multiple cells.

2. All rows containing selected cells will be highlighted with a secondary color.

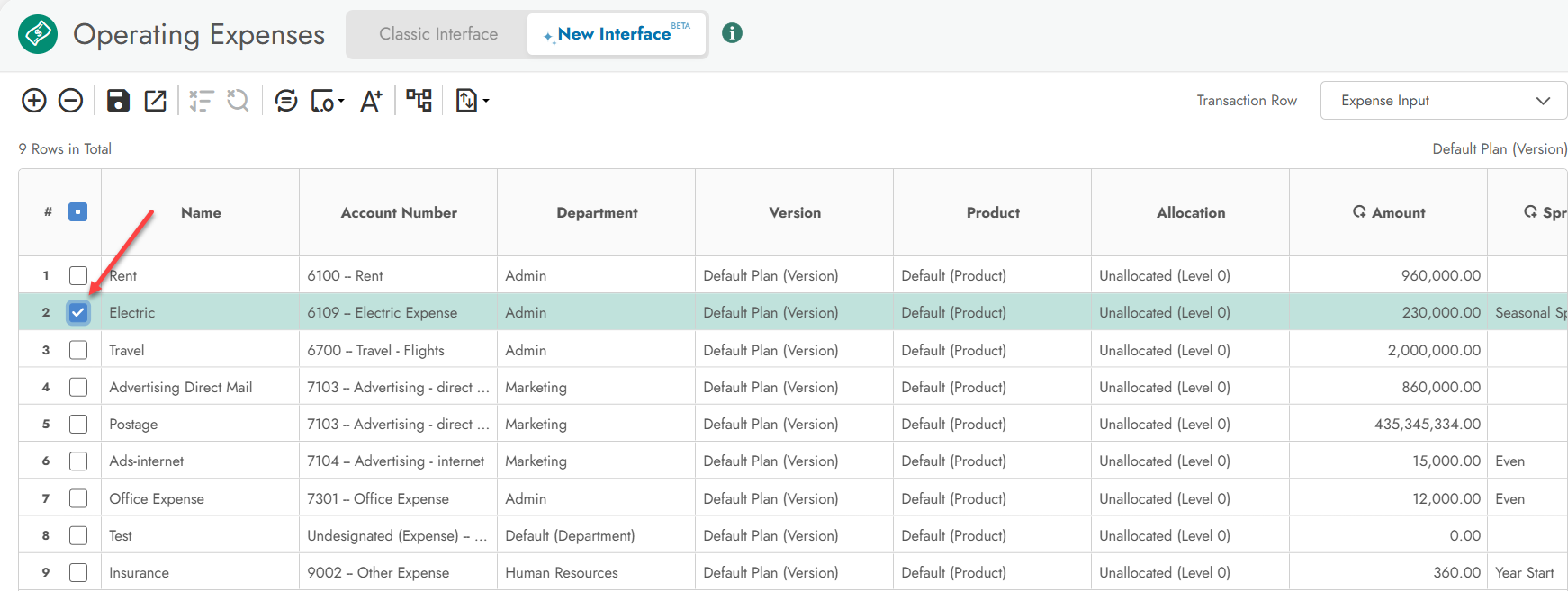

Selecting a Row

1. Click the checkbox on the left side of a row.

2. The row will be highlighted with a primary color, indicating full selection.

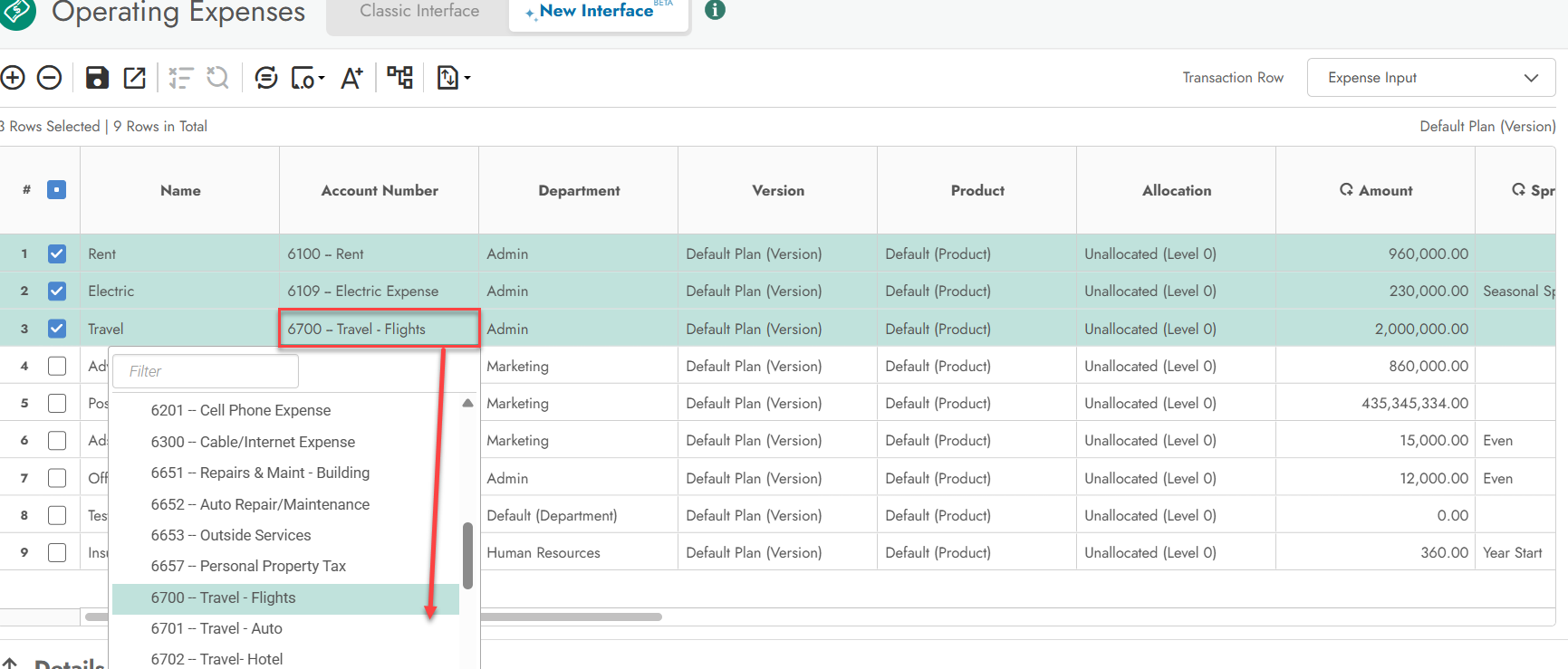

Editing a Cell in a Selected Row

1. Double-click a cell in a row that is already selected (primary highlight).

2. The row remains highlighted, and you can edit the cell without losing the selection.



Switching Selection

• If you select cells after selecting rows, the row selection is cleared, and the new selection is applied to the relevant rows.

Deselecting

• Click a cell in a different, unselected row to deselect the previous row and highlight the new row.

Editing Row Properties

• With a cell selected (secondary highlight), you can edit row-level properties. The highlight remains after editing.

Visual Reference

• Primary Highlight: Indicates a row is fully selected (via checkbox).

• Secondary Highlight: Indicates a row contains one or more selected cells.

Consistency

All behaviors described above apply to both the Worksheets and Payroll Integration Preview screens, ensuring a consistent user experience.
